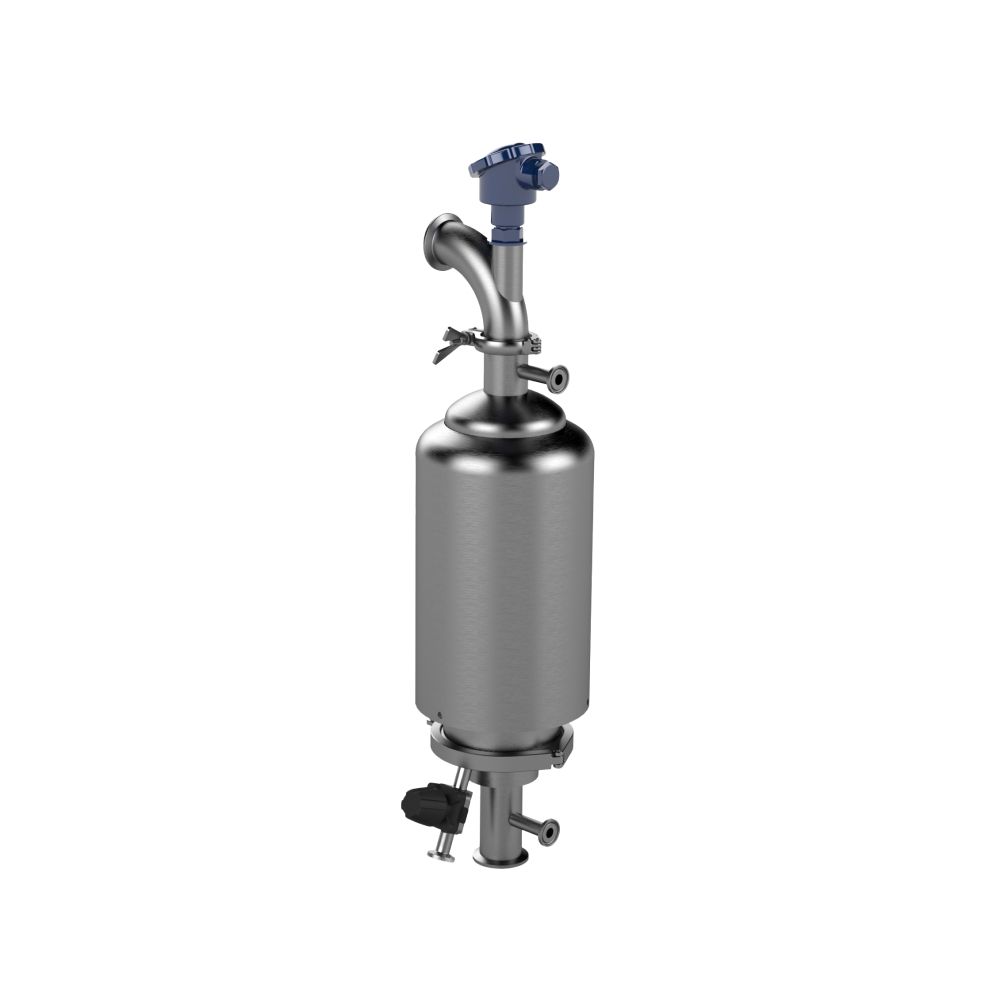

Pro Heated Filter
The Pro Heated model is a reliable and widely used option for storage tanks for purified water and injectables in the pharmaceutical industry. Its design complies with the demanding ASME VIII div.1 and ASME BPE standards, guaranteeing the highest quality and safety. Like the previous models, it contains no loose parts inside and offers a 4” clamp connection for a secure, contaminant-free seal. Its external heating system and safety system ensure product integrity, with options for condensate discharge. Available for 5” filters.
| H | h | D | Inlet | Outlet | Condensate outlet | Heating | Sensor temperture | Integrity test | Integrity test conections |
|---|---|---|---|---|---|---|---|---|---|
| 635 | 525 | 154 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | Sensor temperature WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes | TC ½” ASME B |
| 35 | 525 | 154 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Sensor temperature WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes | Staubli RBE.03 Sanitaty valve |
| 635 | 525 | 154 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Sensor temperature WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes | Staubli RBE.03 Sanitaty valve |
