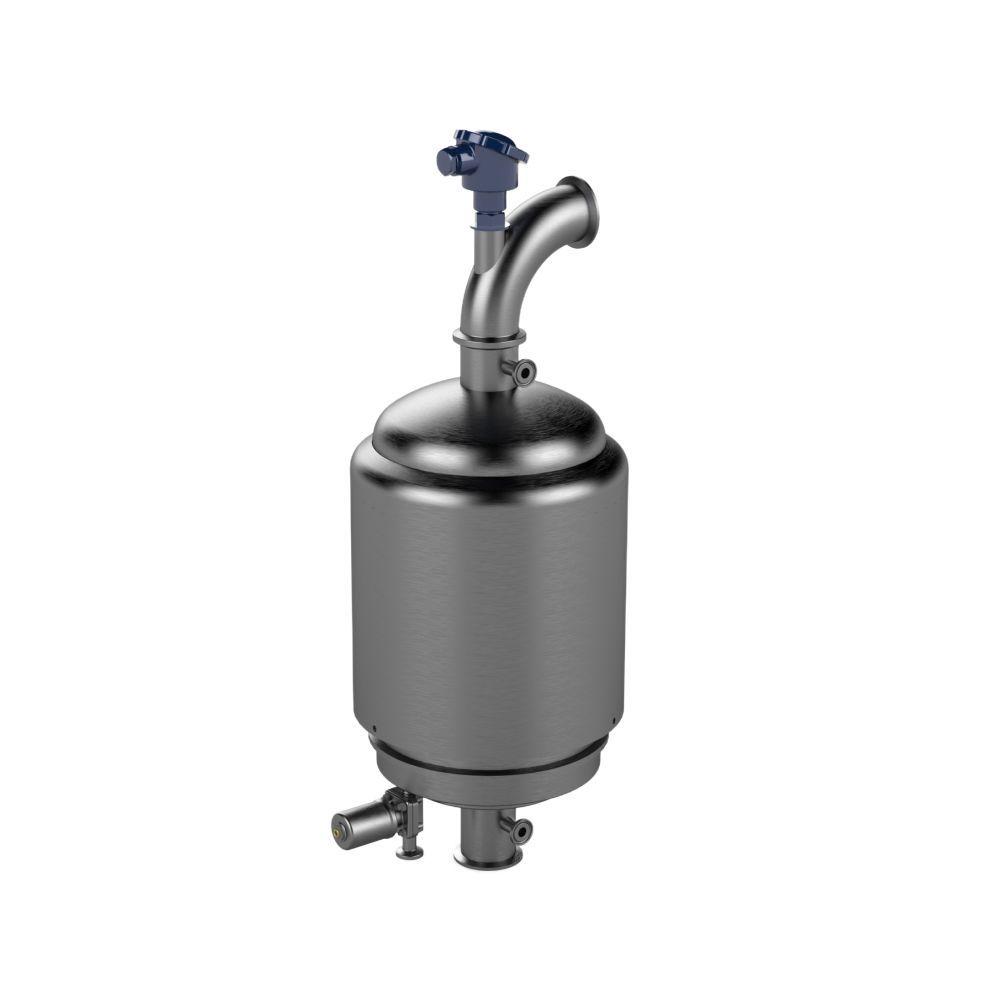

Double Pro Heated Filter

The Double Pro Heated is the multi-filter version of the Pro Heated model, designed for applications in large tanks or with high consumption of purified water. It meets the strict ASME VIII div.1 and ASME BPE standards, and offers the same integrity and safety features. With a 4” clamp connection and condensate discharge options, this housing provides reliable and efficient filtration. Available for 5” filters.

Download technical sheet

Download 3D model

H	h	D	Inlet	Outlet	Condensate outlet	Heating	Sensor temperture	Integrity test	Integrity test conections
670	540	244	1” TC ASME BPE	1” TC ASME BPE	1/2” TC ASME BPE	300W Electrical resistance. External heating insulaton	Sensor temperature WIKA TRC-11 to measure the air temperature on the outlet with transmiter	Yes, optional	TC ½” ASME BPE

All our vent filters

Basic Filter

The Basic filter housing designed for venting atmospheric tanks in pharmaceutical environments.
Button

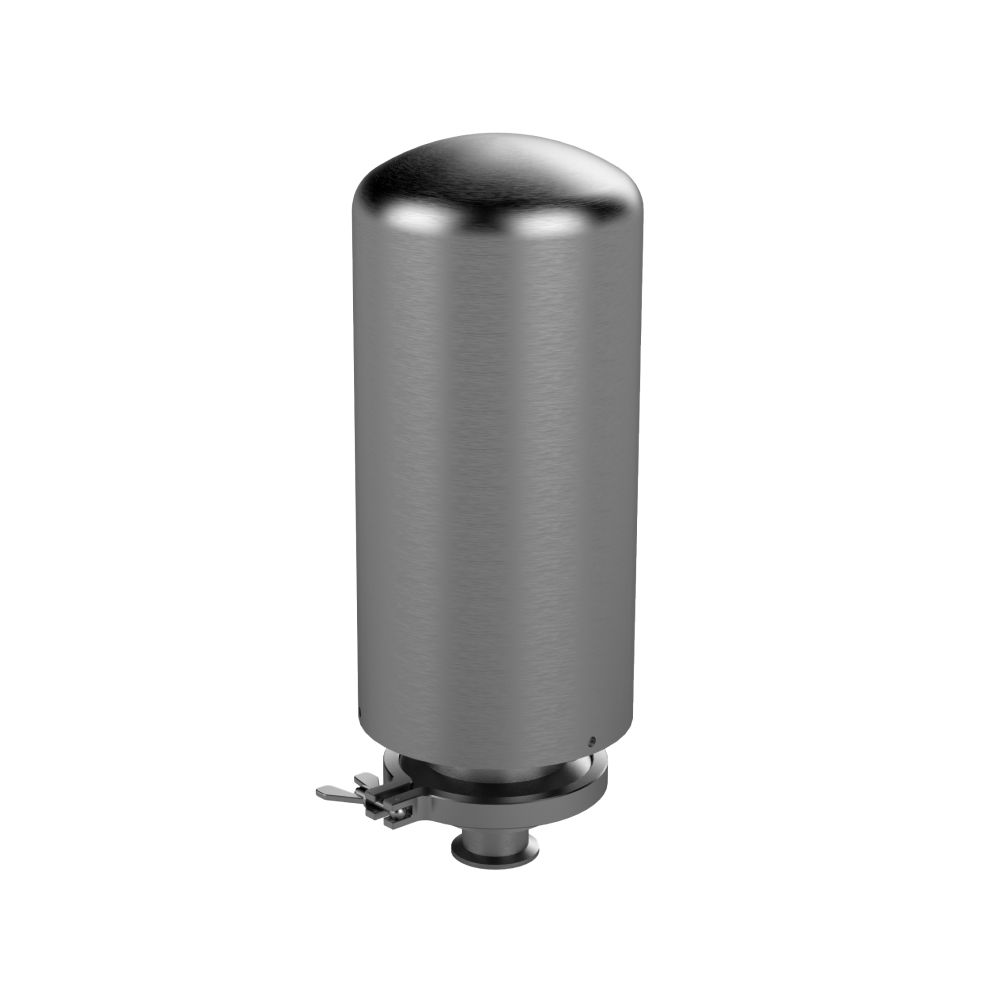

Filtro Basic Heated

The Basic Heated filter housing is a heated version designed for venting atmospheric or pressure tanks in pharmaceutical environments.
Login

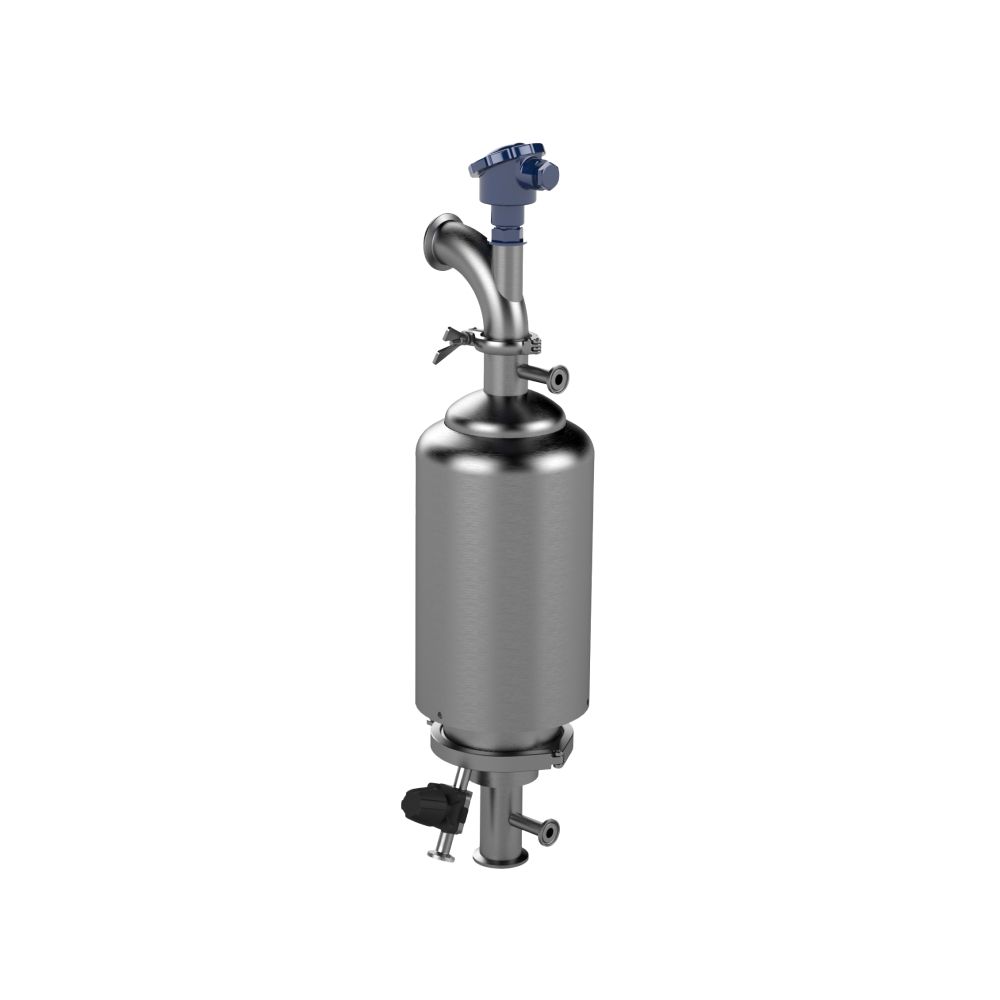

Filtro Pro Heated

The Pro Heated model is an option for purified water storage tanks and for injectables in the pharmaceutical industry.
Login
Filtro Double Pro Heated

The Double Pro Heated is the multi-filter version of the Pro Heated model, designed for large tanks or those with high consumption of purified water.
Button

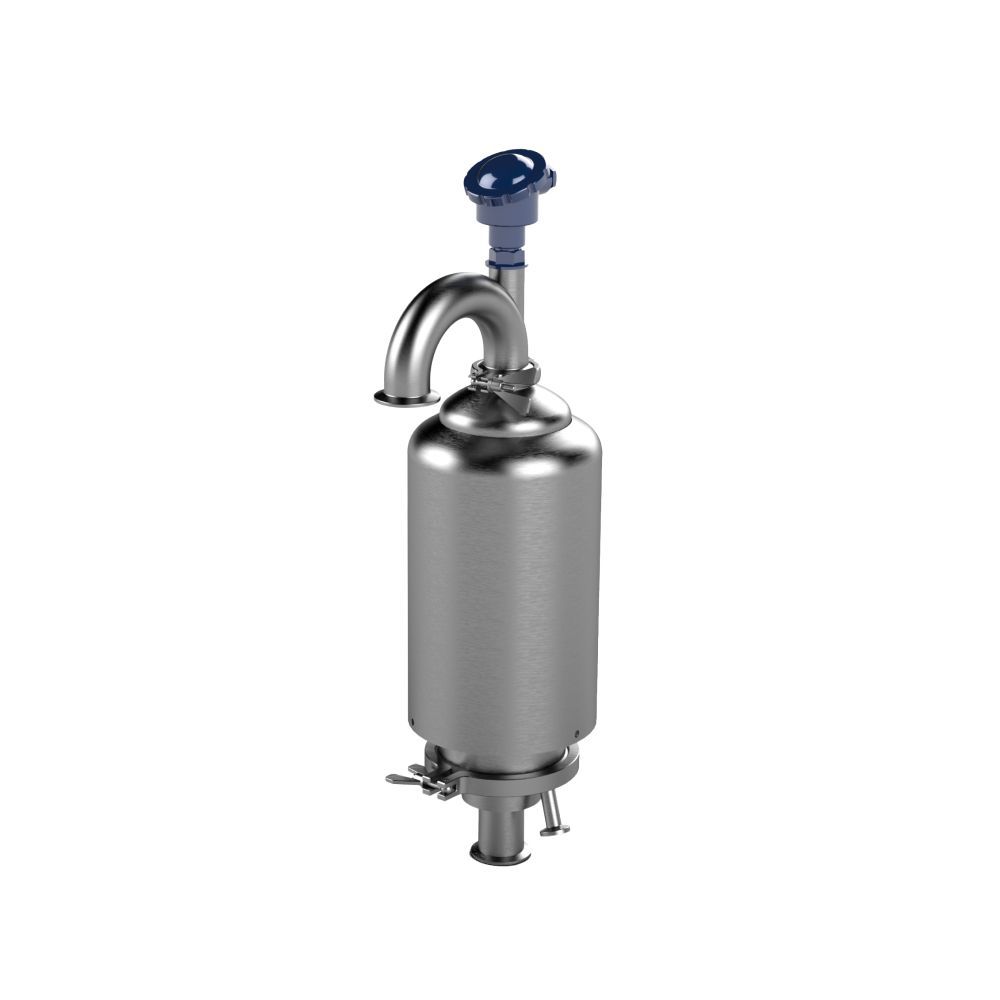

Filtro Pro Heated 180º

Used in purified and injectable water storage tanks, with a design in accordance with ASME VIII div.1 and ASME BPE.
Button

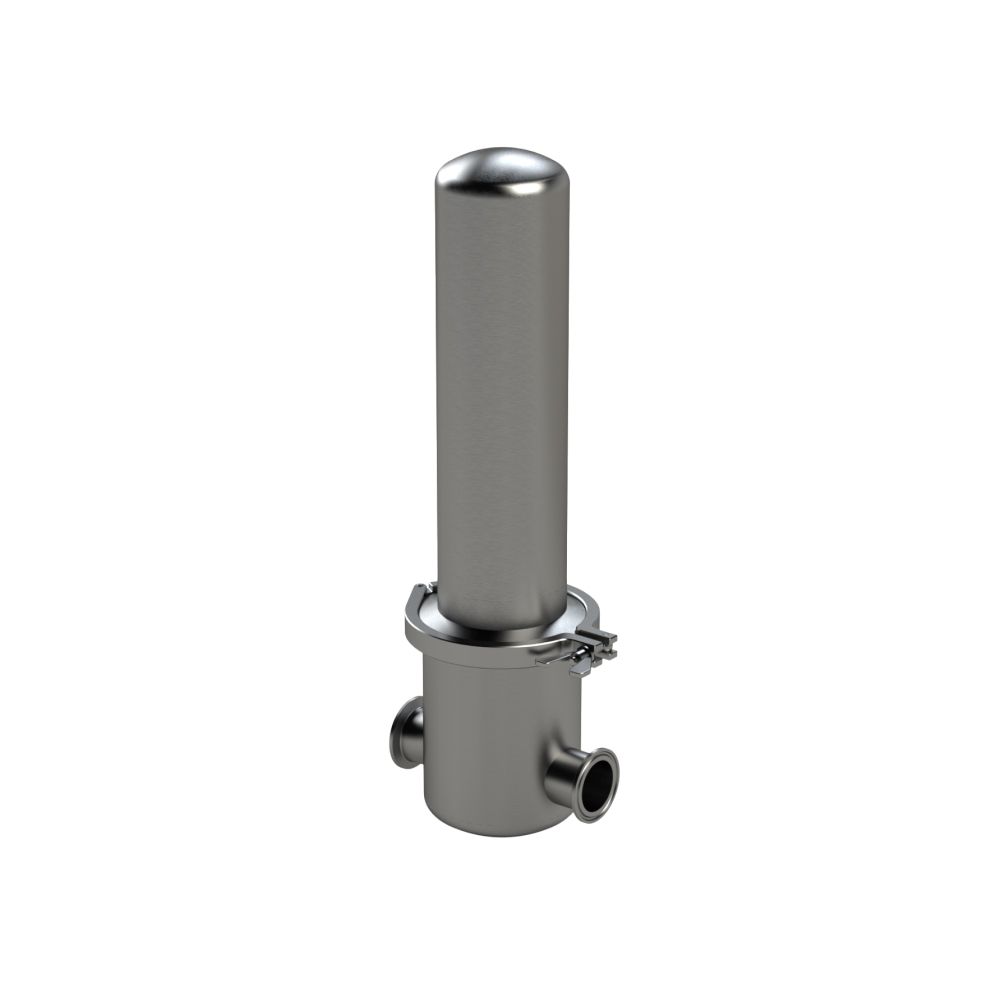

In-Line Filter

The In Line Filter Housing is designed for in-line fluid filtration in pharmaceutical environments.
Button
