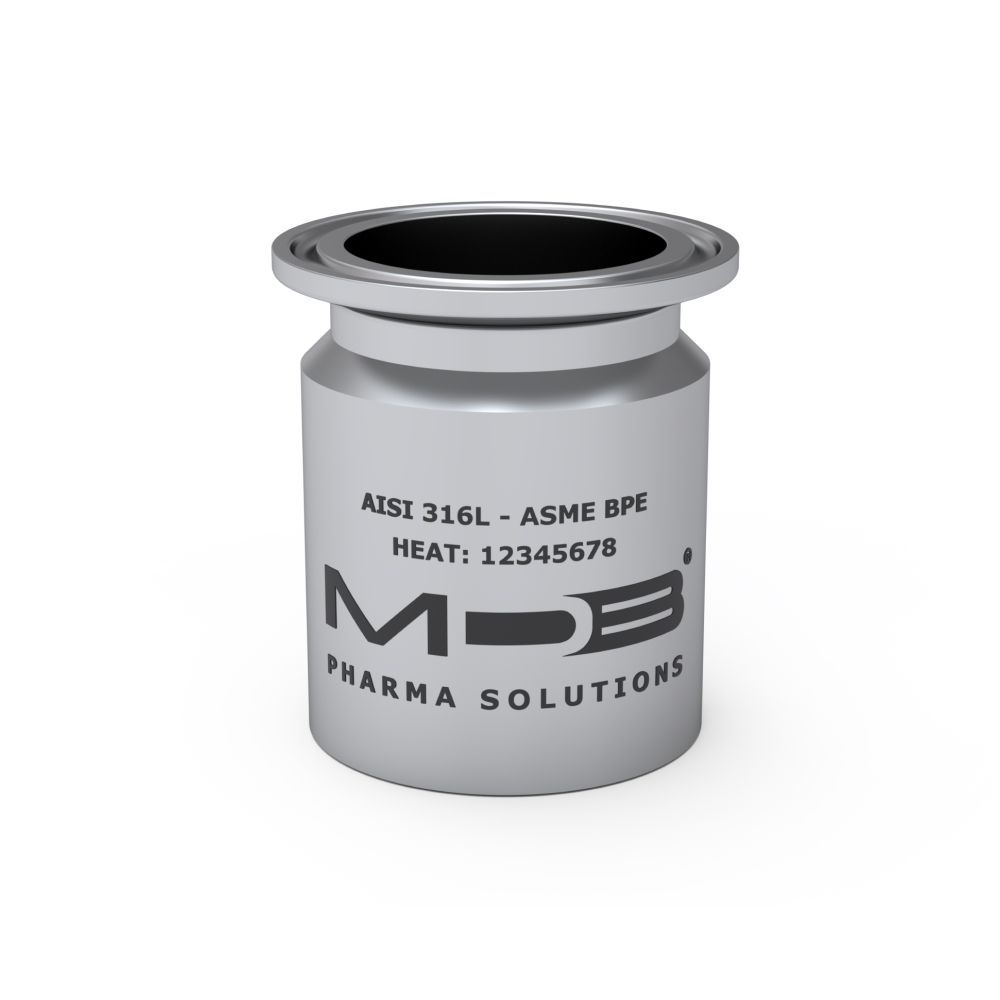

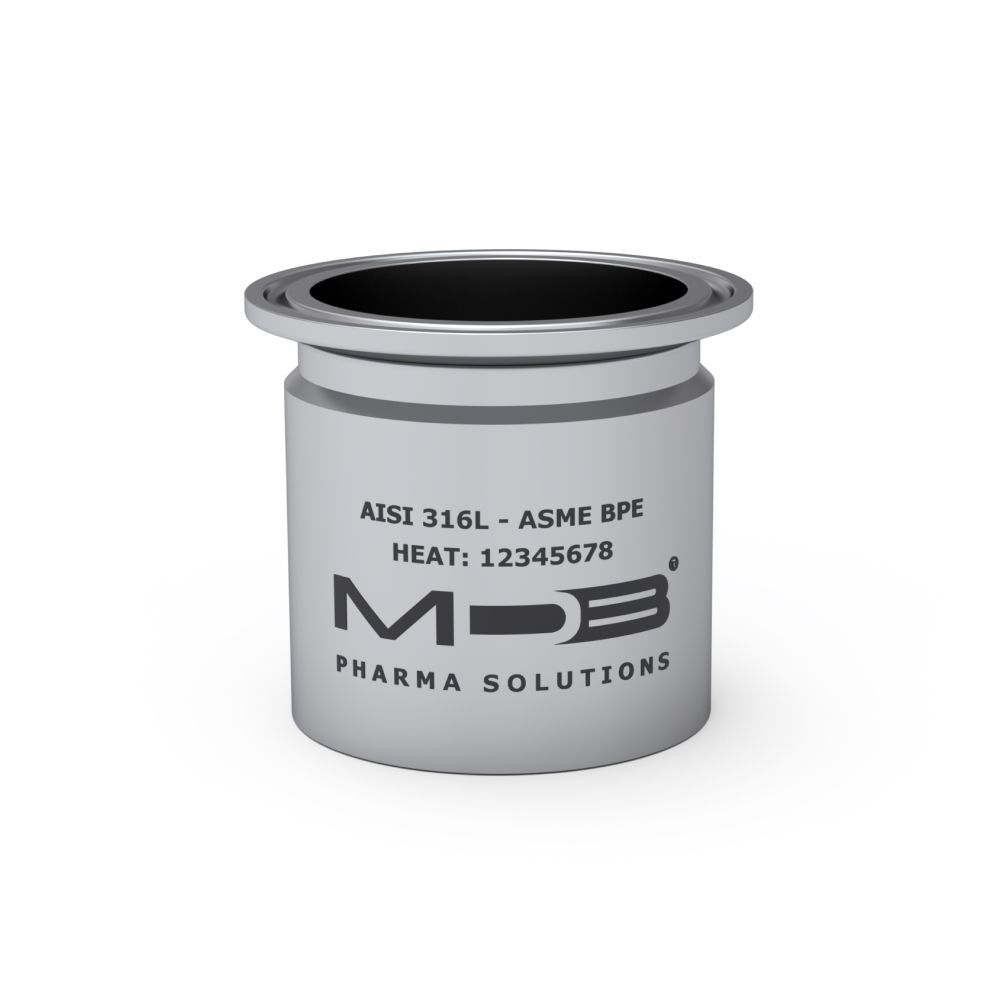

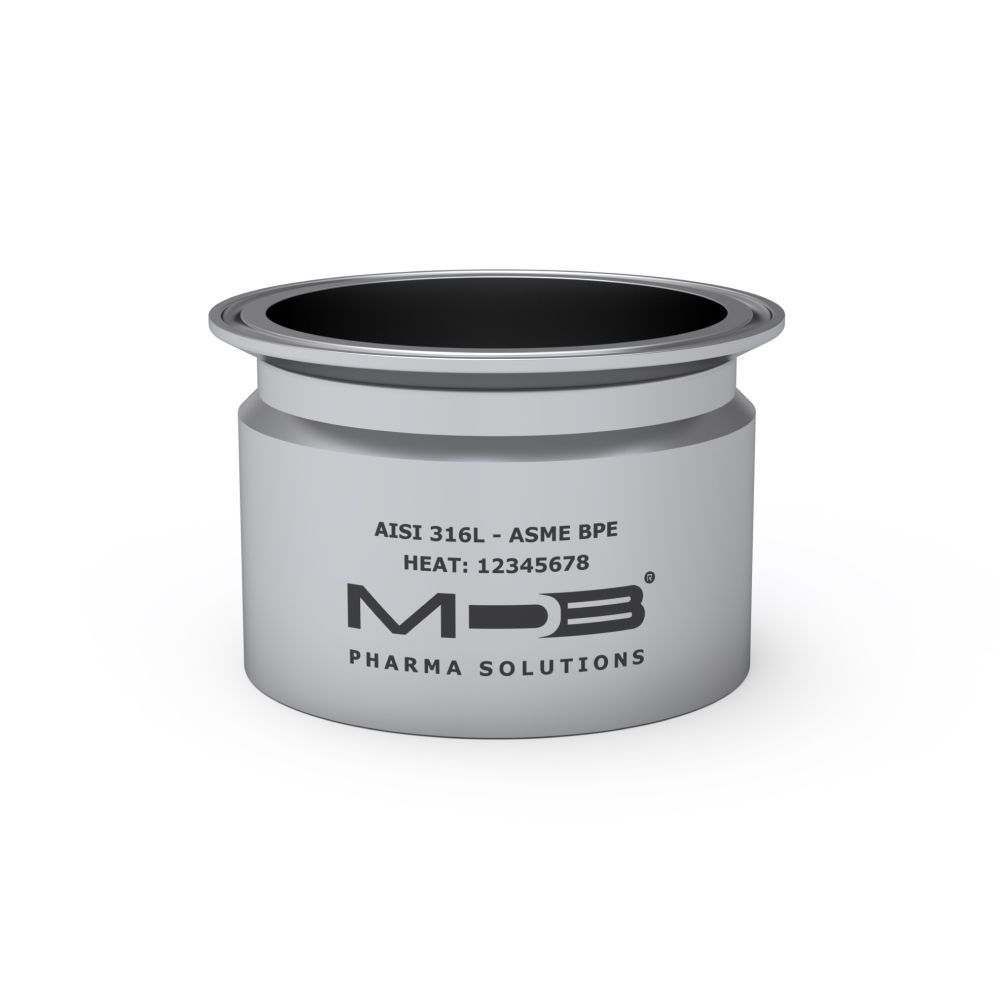

Reinforced Clamp Connections
Our line of reinforced clamp connections offer a robust and reliable solution for a wide range of industrial applications. Designed to withstand high pressure and extreme temperature conditions, these connections ensure a tight and long-lasting seal in demanding environments.
Manufactured from premium materials and cutting-edge technology, our reinforced clamp connections provide exceptional corrosion resistance, making them ideal for use in chemical, pharmaceutical, food and liquid processing industries.
Featuring a reinforced construction and high-performance sealing gasket, these connections offer simple and safe installation, along with minimal maintenance. In addition, their ergonomic design allows easy access for inspection and cleaning, ensuring maximum operational efficiency and compliance with the most demanding quality standards.
Whether for fluid transfer applications, food processing systems, or laboratory equipment, our rugged clamp connections deliver superior performance and unmatched reliability in every application. Rely on our experience and quality to meet your connection needs in any industrial environment.
| Size | FLG OD | TUBE FROM | TUBE ID | WT | G CTR | L1 |
|---|---|---|---|---|---|---|
| 0.50" | 25.4 | 19.4 | 9.4 | 5.00 | 20.3 | 50.0 |
| 0.75" | 25.4 | 25.8 | 15.8 | 5.00 | 20.3 | 50.0 |
| 1.00" | 50.5 | 32.1 | 22.1 | 5.00 | 43.5 | 70.0 |
| 1.50" | 50.5 | 44.8 | 34.8 | 5.00 | 43.5 | 70.0 |
| 2.00" | 64.0 | 57.5 | 47.5 | 5.00 | 56.5 | 70.0 |
| 2.50" | 77.5 | 70.2 | 60.2 | 5.00 | 70.5 | 70.0 |
| 3.00" | 91.0 | 82.9 | 72.9 | 5.00 | 83.5 | 70.0 |
| 4.00" | 119.0 | 107.4 | 97.4 | 5.00 | 110.0 | 70.0 |
