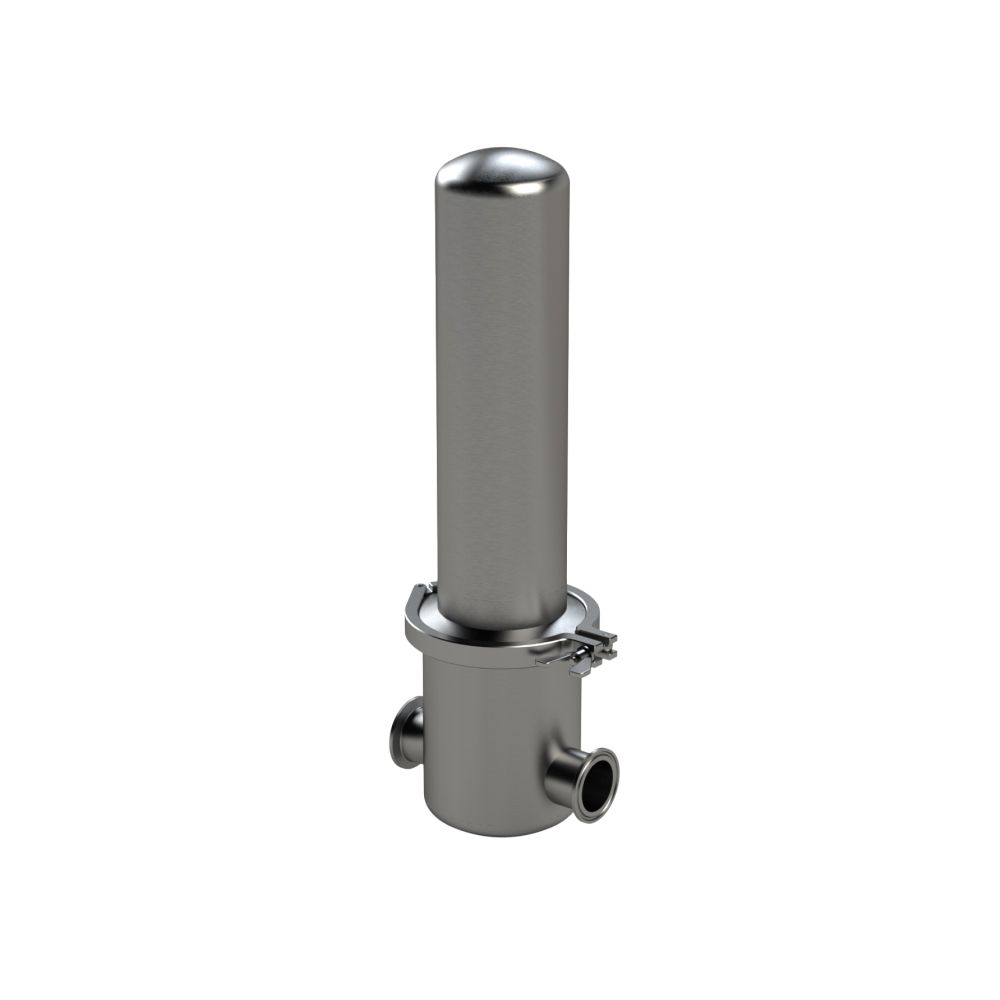

In-Line Filter
The In Line filter housing has been specifically designed for in-line fluid filtration in pharmaceutical environments. It complies with ASME BPE regulations and offers a tight, contaminant-free seal. Ideal for applications in reactor feed or prior to dosing of the product into its final container. Available in several variants, including ASME BPE clamp connections for integrity testing and pressure gauges. With its robust structure and innovative design, this housing provides a reliable and efficient solution for fluid filtration in the pharmaceutical industry.
| H | h | D | Inlet | Outlet | Condensate outlet | Heating | Sensor temperture | Integrity test | Integrity test conections |
|---|---|---|---|---|---|---|---|---|---|
| 450 | 310 | 104 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | TC ½” ASME BPE |
| 450 | 310 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | Staubli RBE.03 Sanitaty valve |
| 450 | 310 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | Staubli RBE.03 Sanitaty valve |
