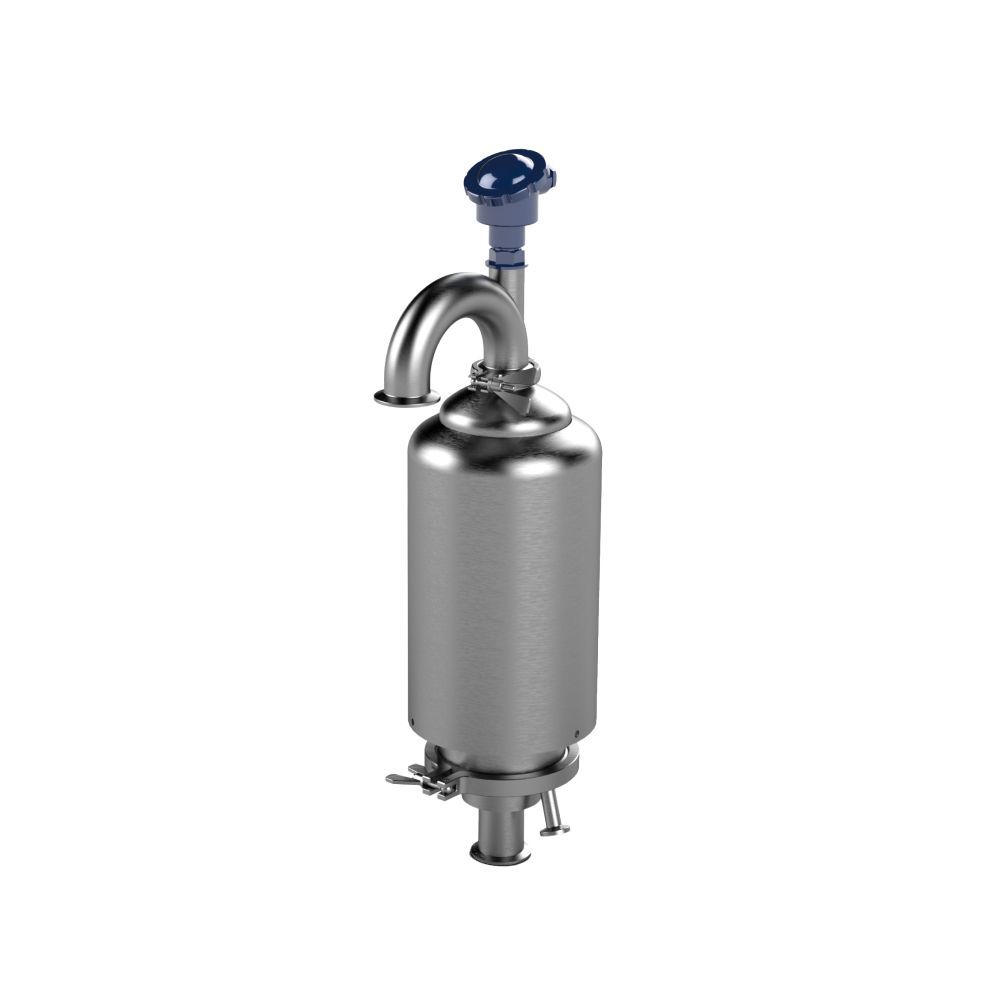

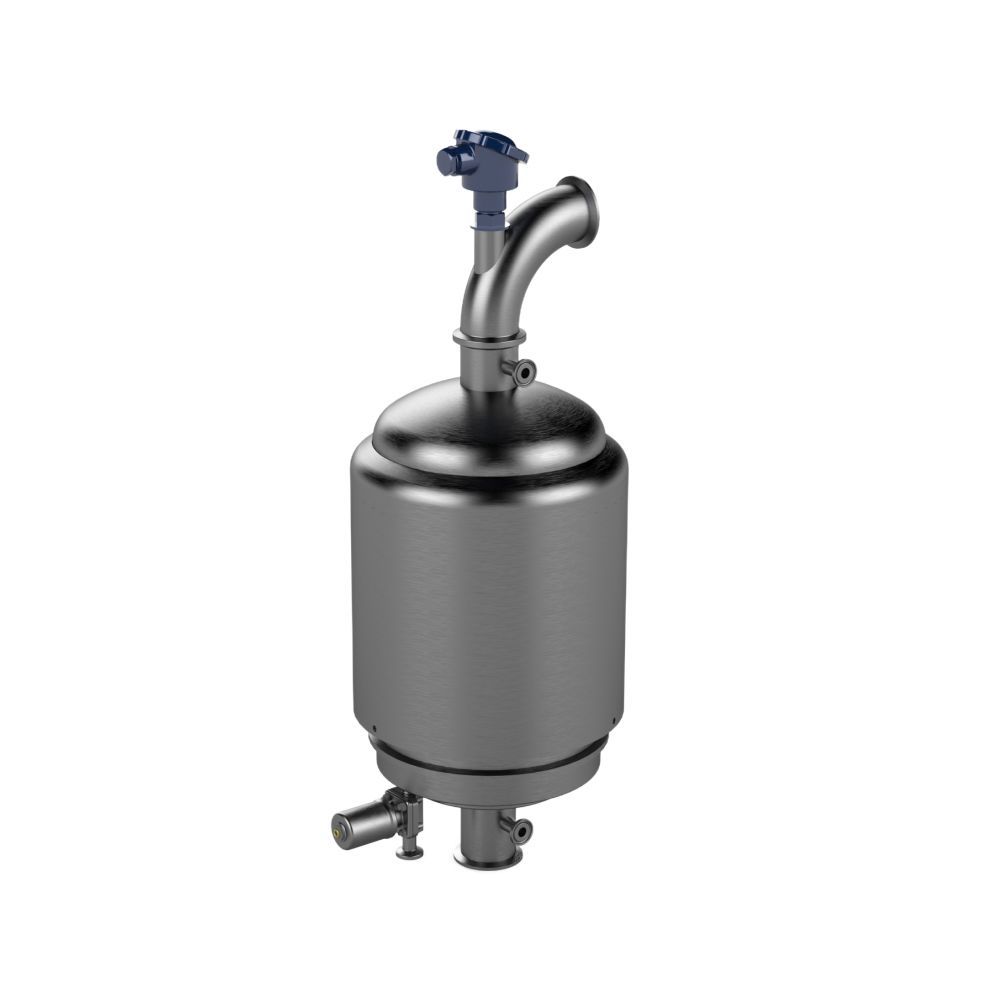

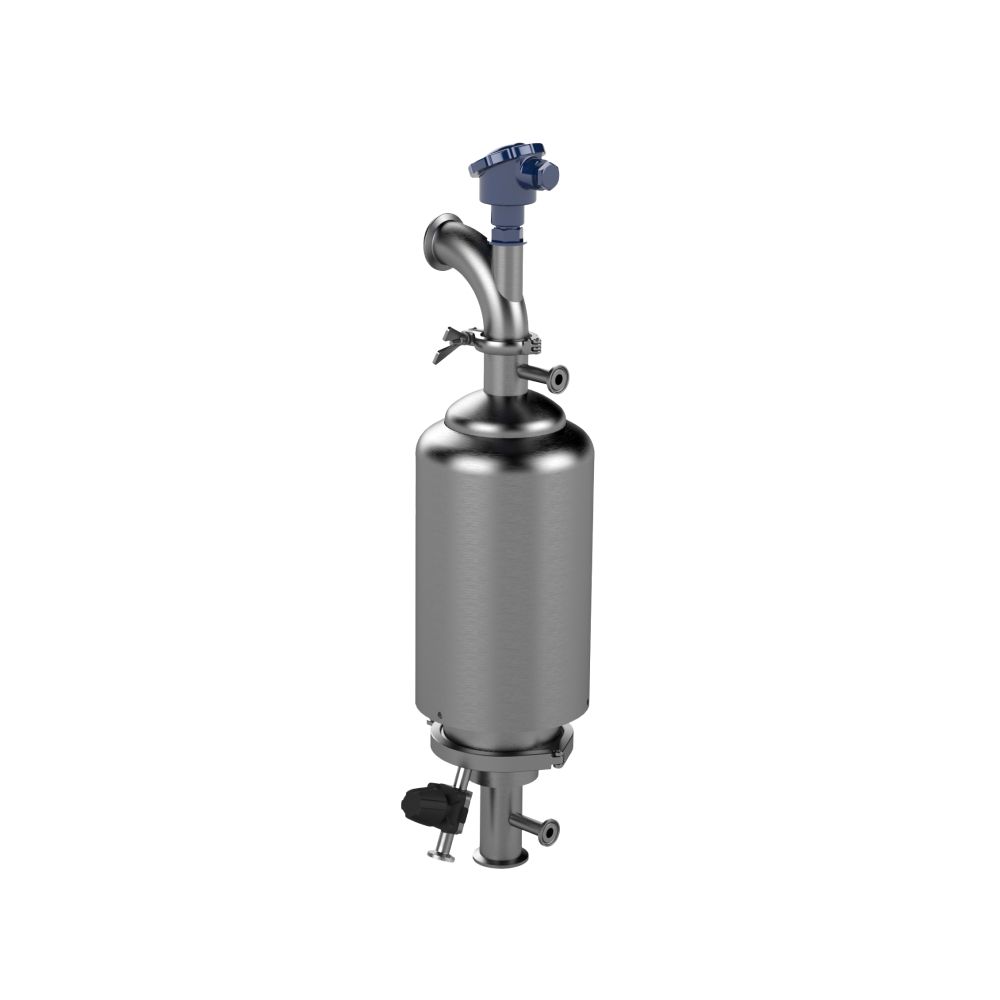

Designed for venting atmospheric tanks in pharmaceutical environments, its structure, developed according to regulations
ASME BPE, guarantees the total absence of loose parts inside, thus ensuring a correct seal and no contaminants. The connection by means of a 4” clamp makes assembly easier during maintenance operations, providing an efficient and safe installation. This housing is perfect for venting purified water and fermentation tanks in the food industry. In addition, it is available in versions for 5” filters and multifilters, offering versatility to adapt to various needs.
Type | H | h | D | Inlet | Outlet | Condensate outlet | Heating | Integrity test |
---|---|---|---|---|---|---|---|---|

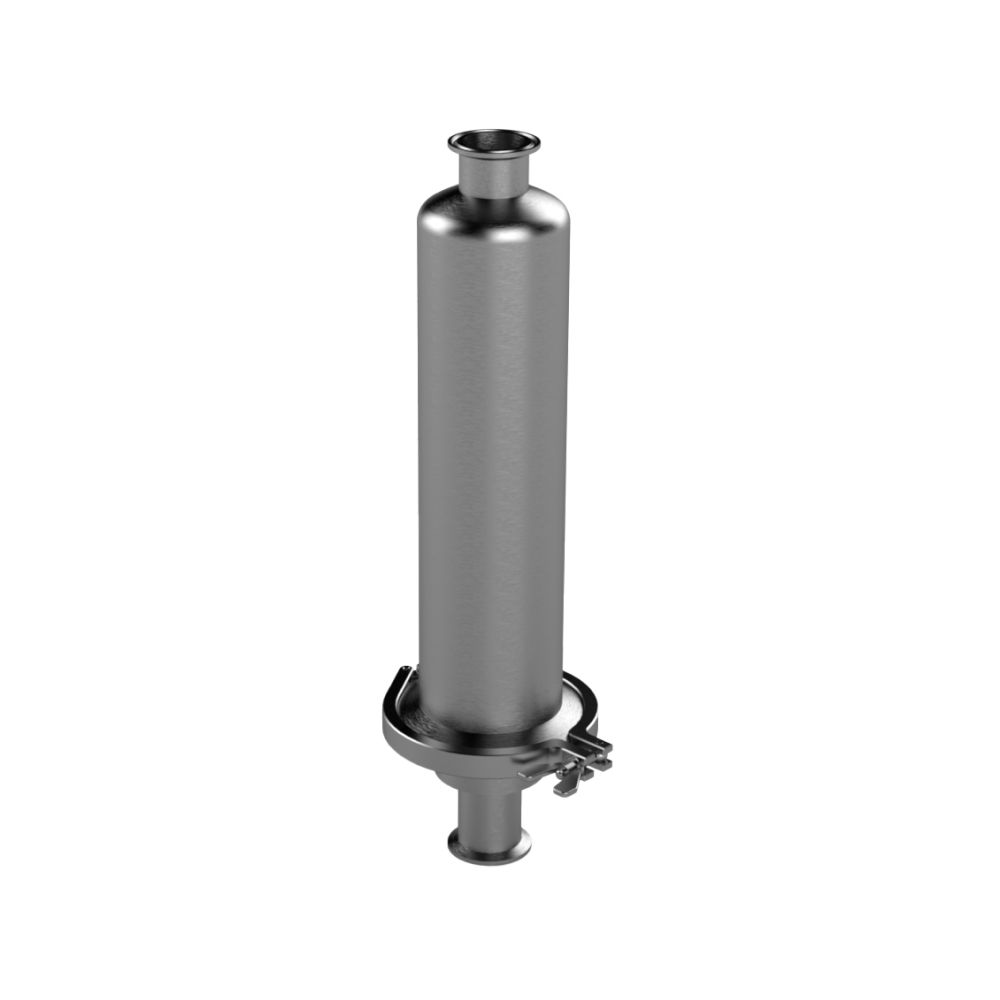

Basic | 400 | 315 | 84 | 1” TC ASME BPE | 1” TC ASME BPE | No | No | Optional |
Basic | 400 | 315 | 84 | 1” TC ASME BPE | 1” TC ASME BPE | No | No | Optional |
Basic | 400 | 315 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | No | No | Optional |
Basic | 400 | 315 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | No | No | Optional |
Basic | 400 | 315 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | No | No | Optional |
Basic | 400 | 315 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | No | No | Optional |
