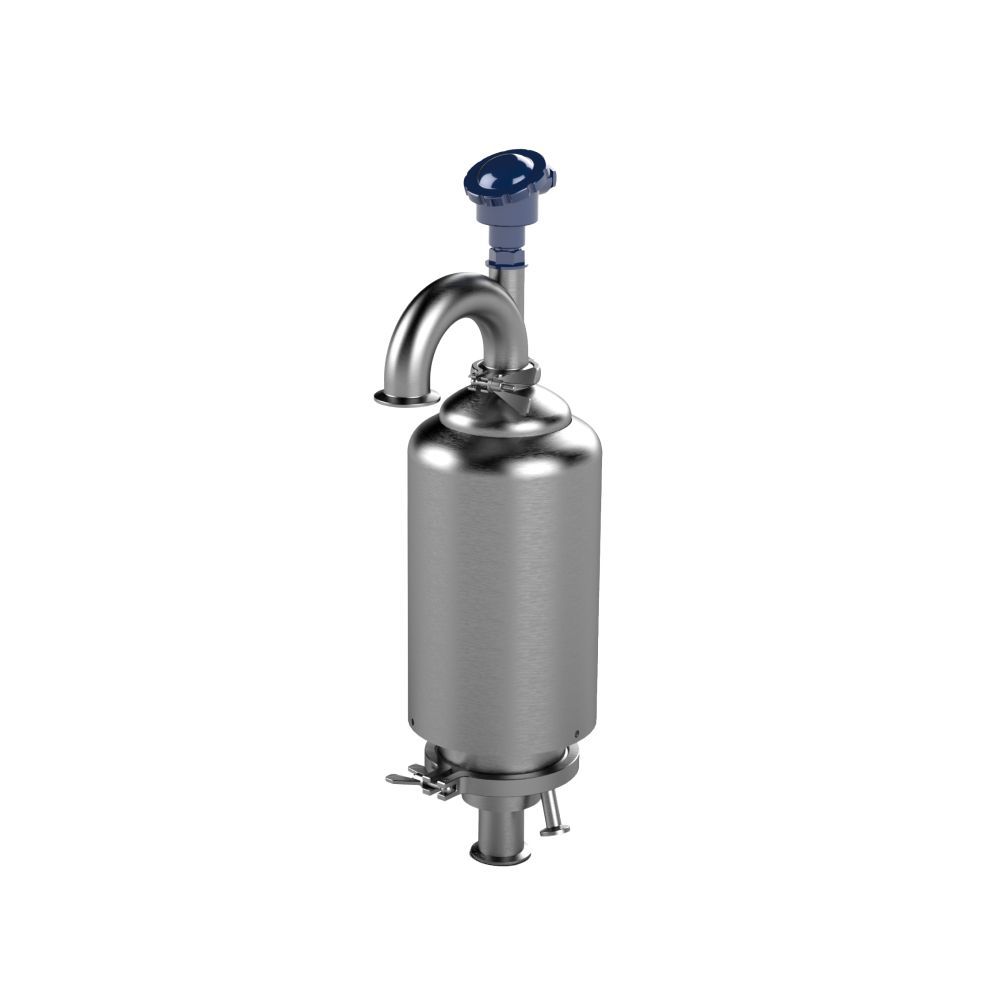

Filtro Pro Heated 180º
El Pro Heated 180º es un modelo ampliamente utilizado en tanques de almacenamiento de agua purificada e inyectables, con un diseño conforme a ASME VIII div.1 y ASME BPE. Ofrece un sistema de calefacción y control de temperatura, con opciones para descarga de condensados. Disponible para filtros de 5”.
| H | h | D | Inlet | Outlet | Condensate outlet | Heating | Sensor temperture | Integrity test | Integrity test conections |
|---|---|---|---|---|---|---|---|---|---|
| 35 | 525 | 154 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | TC ½” ASME BPE |
| 635 | 525 | 154 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | Staubli RBE.03 Sanitaty valve |
| 635 | 525 | 154 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | WIKA TRC-11 to measure the air temperature on the outlet with transmitter | Yes | Staubli RBE.03 Sanitaty valve |
